High and Low Environments
Our mobile tower is suitable for high and low environments
(such as stairways, and theaters etc.)
8”Hight Loading Castor Wheel
(with adjustable height function)
PU + Nylon 8”Hight Loading Castor Wheel
Turn and ajust the height (Max. 20cm)
Aluminum Platform
with Adjustable Height Function
By moving the platform @ the frame to adjust the standing height.
(min adjustable distance is 46 cm)
Storage Cart
Bottome frame can be used as storage cart;
no extra accessories and easy to storage and moving

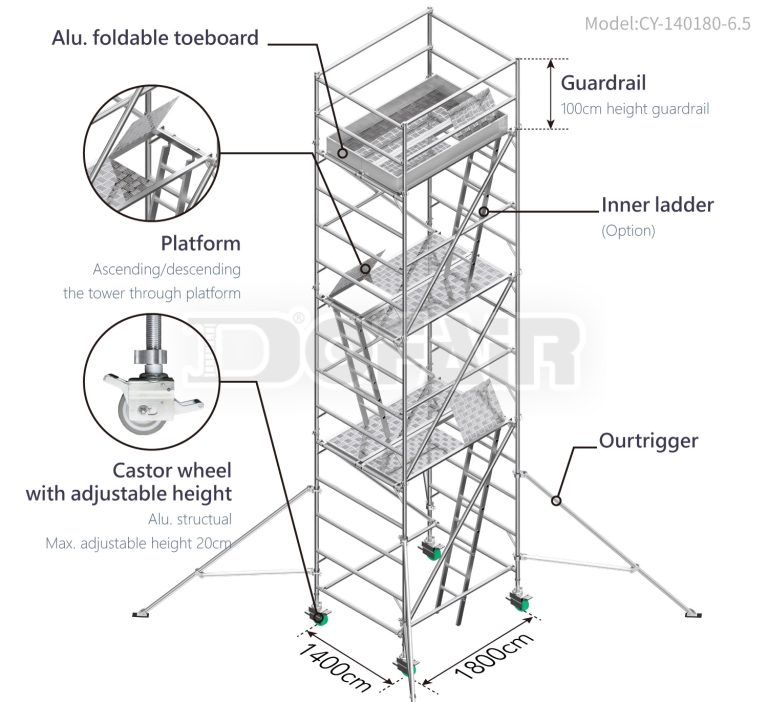

FEATURES
8” Hight Loading Castor Wheel
(with adjustable height function)
PU + Nylon 8”Hight Loading Castor Wheel
Turn and ajust the height (Max. 20cm)
Anti-slip round tube
50mm anti-slip round tube for better grip and ascending/discending
Quick connecting pin
We use quick connecting pin to connect frames to save the assembling time
Quick operated fastener
Use screw to connect to the frame to fit with different environment
Aluminum Working platform
Ascending/discending the tower through platform
Quick lock for wind-lifting protection
Pull the lock to avoid the platform being wind-lifting cases
NON-SLIP outrigger
Provide extra safety and stability
SPECIFICATION
MODEL |
PLATFORM SIZE |
PLATFORM HEIGHT |
TOUCHING HEIGHT |
REQUIRED BOTTOM SPACE (MAX.) |
WEIGHT |
---|---|---|---|---|---|
CY-140180-2.5 | 1.4 x 1.8 m | 2.5 m | ≈ 4.5 m | 4.3 m | 123 kg |
CY-140180-3.0 | 3.0 m | ≈ 5.0 m | 167 kg | ||
CY-140180-3.5 | 3.5 m | ≈ 5.5 m | 170 kg | ||
CY-140180-4.0 | 4.0 m | ≈ 6.0 m | 203 kg | ||
CY-140180-4.5 | 4.5 m | ≈ 6.5 m | 208 kg | ||
CY-140180-5.0 | 5.0 m | ≈ 7.0 m | 226 kg | ||
CY-140180-5.5 | 5.5 m | ≈ 7.5 m | 229 kg | ||
CY-140180-6.0 | 6.0 m | ≈ 8.0 m | 262 kg | ||
CY-140180-6.5 | 6.5 m | ≈ 8.5 m | 267 kg | ||
CY-140180-7.0 | 7.0 m | ≈ 9.0 m | 284 kg | ||
CY-140180-7.5 | 7.5 m | ≈ 9.5 m | 287 kg | ||
CY-140180-8.0 | 8.0 m | ≈ 10.0 m | 5.3 m | 324 kg | |
CY-140180-8.5 | 8.5 m | ≈ 10.5 m | 329 kg | ||
CY-140180-9.0 | 9.0 m | ≈ 11.0 m | 347 kg | ||
CY-140180-9.5 | 9.5 m | ≈ 11.5 m | 350 kg | ||
CY-140180-10 | 10.0 m | ≈ 12.0 m | 383 kg |
SPECIFICATION
MODEL |
PLATFORM SIZE |
PLATFORM HEIGHT |
TOUCHING HEIGHT |
REQUIRED BOTTOM SPACE (MAX.) |
WEIGHT |
---|---|---|---|---|---|
CY-140180-2.5 | 1.4 x 1.8 m | 2.5 m | ≈ 4.5 m | 4.3 m | 123 kg |
CY-140180-3.0 | 1.4 x 1.8 m | 3.0 m | ≈ 5.0 m | 4.3 m | 167 kg |
CY-140180-3.5 | 1.4 x 1.8 m | 3.5 m | ≈ 5.5 m | 4.3 m | 170 kg |
CY-140180-4.0 | 1.4 x 1.8 m | 4.0 m | ≈ 6.0 m | 4.3m | 203 kg |
CY-140180-4.5 | 1.4 x 1.8 m | 4.5 m | ≈ 6.5 m | 4.3 m | 208 kg |
CY-140180-5.0 | 1.4 x 1.8 m | 5.0 m | ≈ 7.0 m | 4.3 m | 226 kg |
CY-140180-5.5 | 1.4 x 1.8 m | 5.5 m | ≈ 7.5 m | 4.3 m | 229 kg |
CY-140180-6.0 | 1.4 x 1.8 m | 6.0 m | ≈ 8.0 m | 4.3 m | 262 kg |
CY-140180-6.5 | 1.4 x 1.8 m | 6.5 m | ≈ 8.5 m | 4.3 m | 267 kg |
CY-140180-7.0 | 1.4 x 1.8 m | 7.0 m | ≈ 9.0 m | 4.3 m | 284 kg |
CY-140180-7.5 | 1.4 x 1.8 m | 7.5 m | ≈ 9.5 m | 4.3 m | 287 kg |
CY-140180-8.0 | 1.4 x 1.8 m | 8.0 m | ≈ 10.0 m | 5.3 m | 324 kg |
CY-140180-8.5 | 1.4 x 1.8 m | 8.5 m | ≈ 10.5 m | 5.3 m | 329 kg |
CY-140180-9.0 | 1.4 x 1.8 m | 9.0 m | ≈ 11.0 m | 5.3 m | 347 kg |
CY-140180-9.5 | 1.4 x 1.8 m | 9.5 m | ≈ 11.5 m | 5.3 m | 350 kg |
CY-140180-10 | 1.4 x 1.8 m | 10.0 m | ≈ 12.0 m | 5.3 m | 383 kg |
